1.0mm Pitch 20-Position Dual-Row Wire-to-Board Cable Assembly

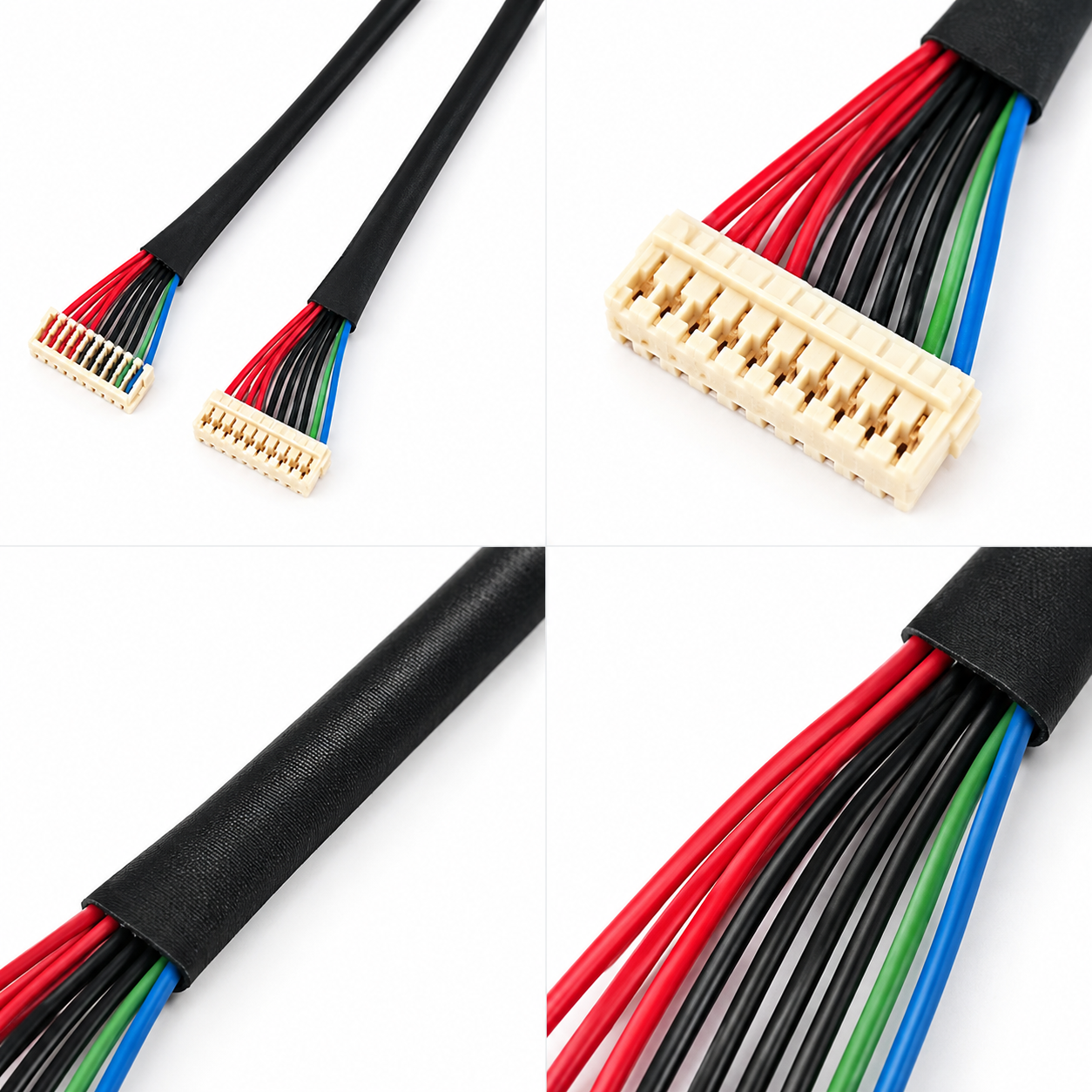

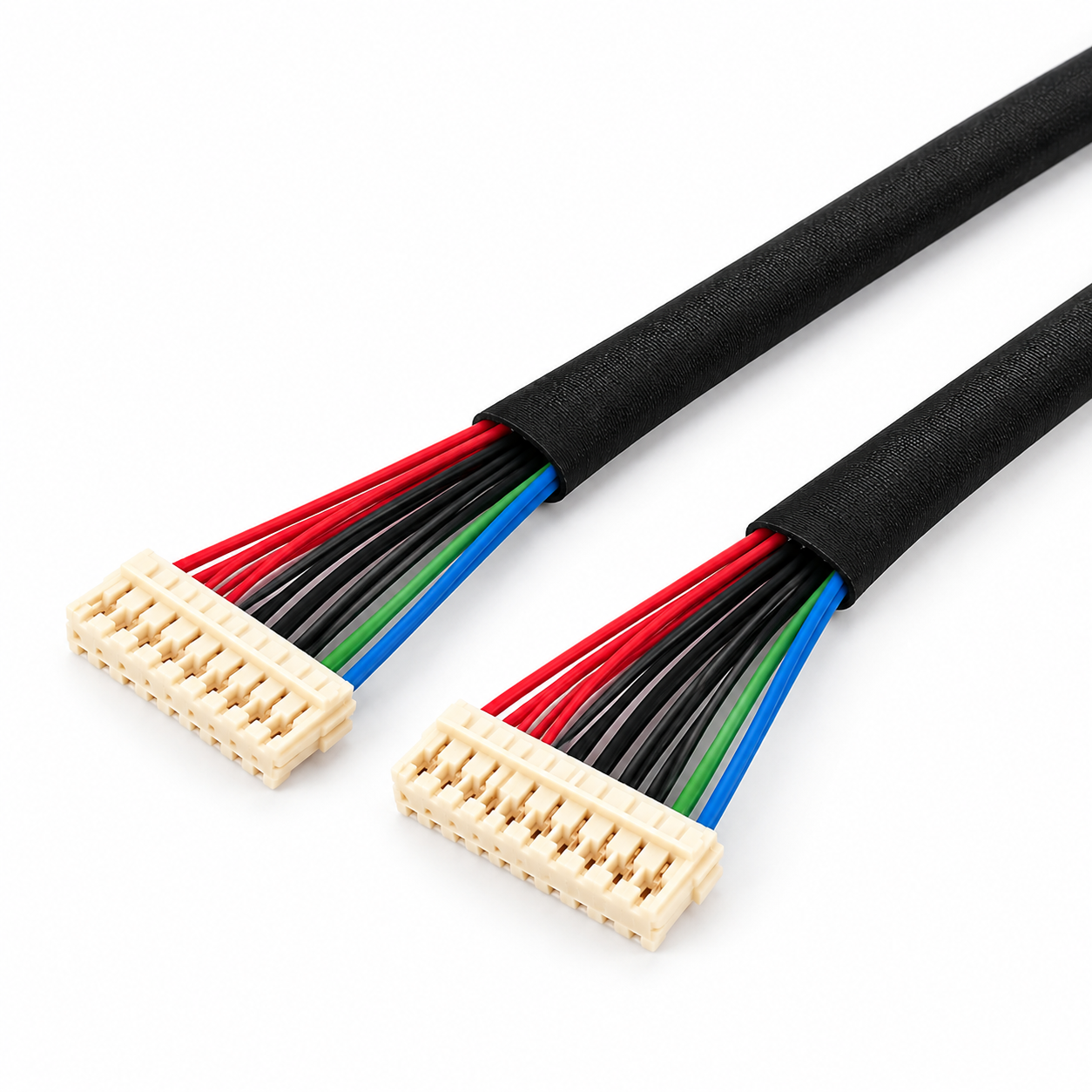

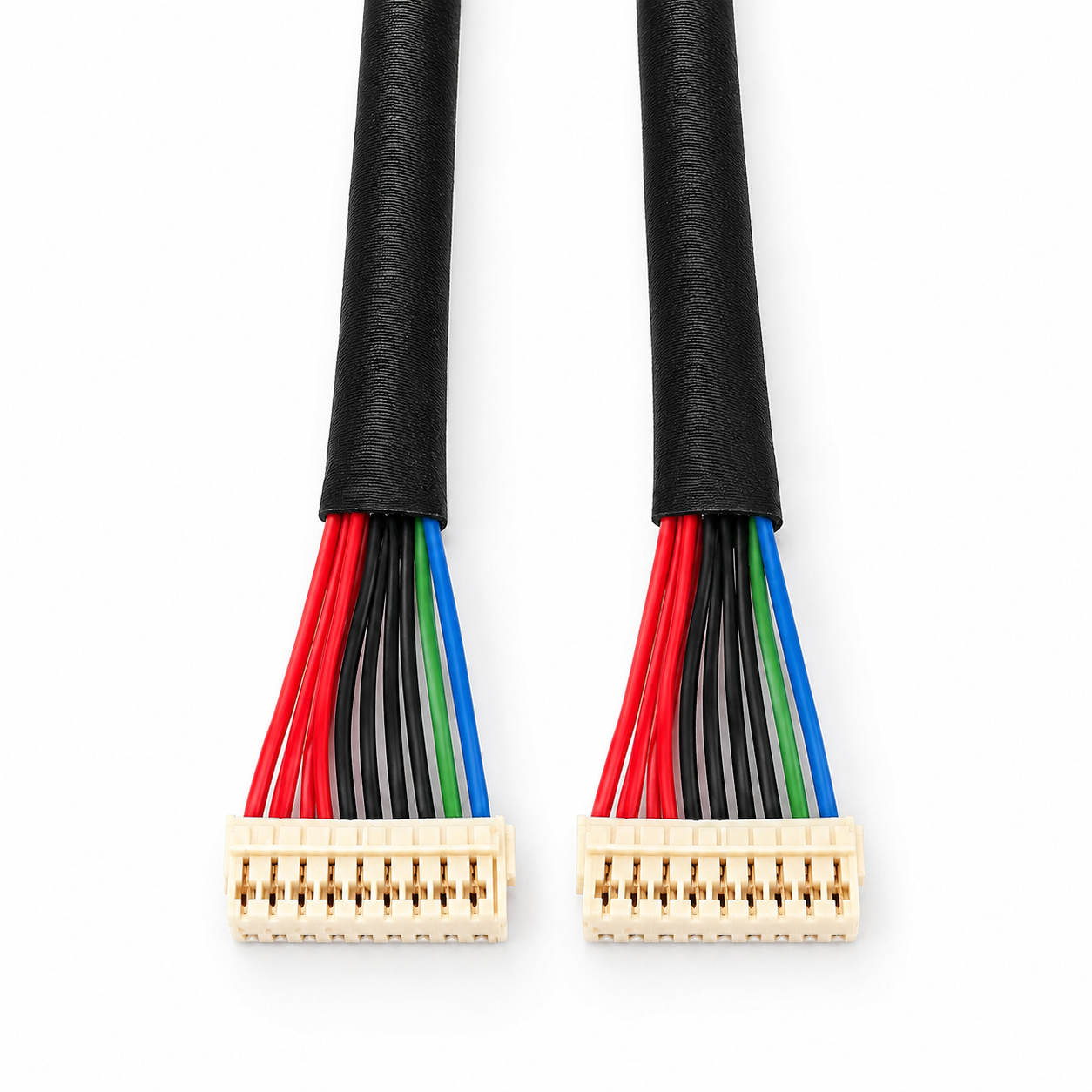

This 1.0mm pitch wire-to-board cable assembly features a 20-position dual-row connector and protective black braided sleeving. Designed for internal electrical connections, it provides an organized cable solution for compatible electronic devices and equipment.
Dongguan LianyuanKe Electronics Co., Ltd specializes in custom wire harnesses and cable assemblies. We offer OEM/ODM customization, direct factory manufacturing, production quality control, and competitive pricing for electronic and industrial applications.
Product Specifications
| Product Name | 20-Position Wire-to-Board Cable Assembly |
| Connector Type | Wire-to-board connector; exact series to be confirmed |
| Connector Positions | 20 positions, dual-row configuration |
| Pitch | 1.0mm nominal; verify against the actual connector |
| Connector Housing | White housing, based on the supplied product description |
| Cable Protection | Black braided sleeving |
| Cable Length | Custom length available upon request |
| Wire Specification | To be confirmed according to project requirements |
| Pin Assignment | Customized according to the approved wiring diagram |
| Customization | OEM/ODM cable length, wire arrangement, connector options, and sleeving |
| Manufacturing | Direct factory production with quality inspection |
Key Product Features
Compact 1.0mm Pitch Design
The compact connector format is suitable for compatible electronic assemblies where space-efficient internal connections are required.
20-Position Dual-Row Connector
A dual-row, 20-position connector configuration supports multi-circuit connections. Final mating compatibility depends on the exact connector series and pin arrangement.
Protective Braided Sleeving
Black braided sleeving helps organize the wire bundle and provides an additional protective layer against everyday handling and abrasion, depending on the selected sleeving material.
OEM/ODM Customization
Cable length, wire specifications, pin assignment, connector selection, and sleeving options can be tailored to approved drawings or samples.
Applications
This custom wire-to-board harness can be used in compatible electronic assemblies requiring compact, organized internal wiring.
- Electronic equipment and internal circuit connections
- Industrial control equipment
- Embedded electronic systems
- Custom electronic modules and circuit boards
- OEM equipment requiring customized wire harnesses
Why Choose LianyuanKe?
Direct Factory Pricing
Work directly with the manufacturer to reduce unnecessary intermediary costs and obtain competitive pricing for custom and volume orders.
Flexible OEM/ODM Solutions
We support custom cable assemblies based on customer drawings, samples, connector requirements, and approved wiring specifications.
Quality Control
Production inspections help maintain assembly consistency and workmanship. Continuity testing and other checks can be specified according to project requirements.
Responsive Service
Our team works with customers to confirm technical details, discuss customization options, and provide quotations for different order quantities.
Need a Custom Cable Assembly?
Contact our factory for custom 1.0mm pitch wire-to-board harnesses, connector and pinout confirmation, OEM/ODM manufacturing, and competitive quotations tailored to your project.
