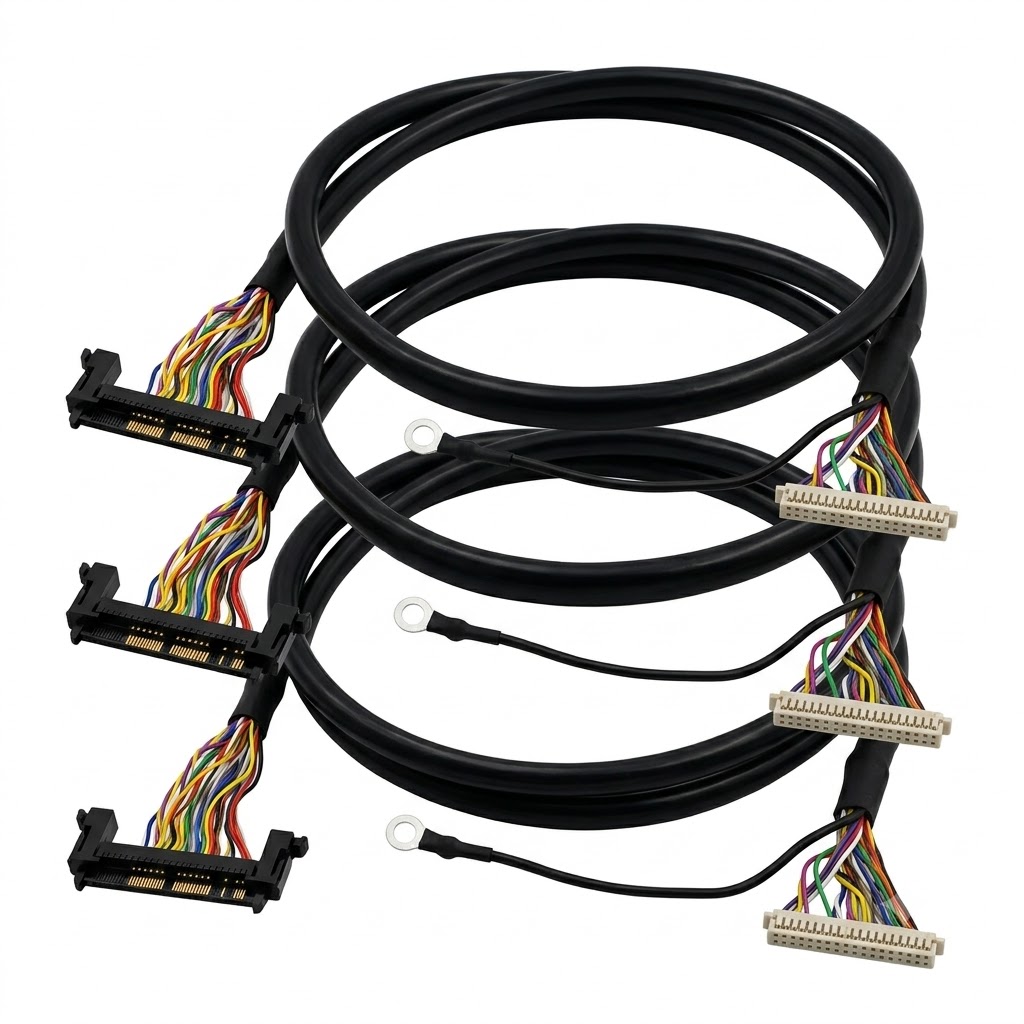

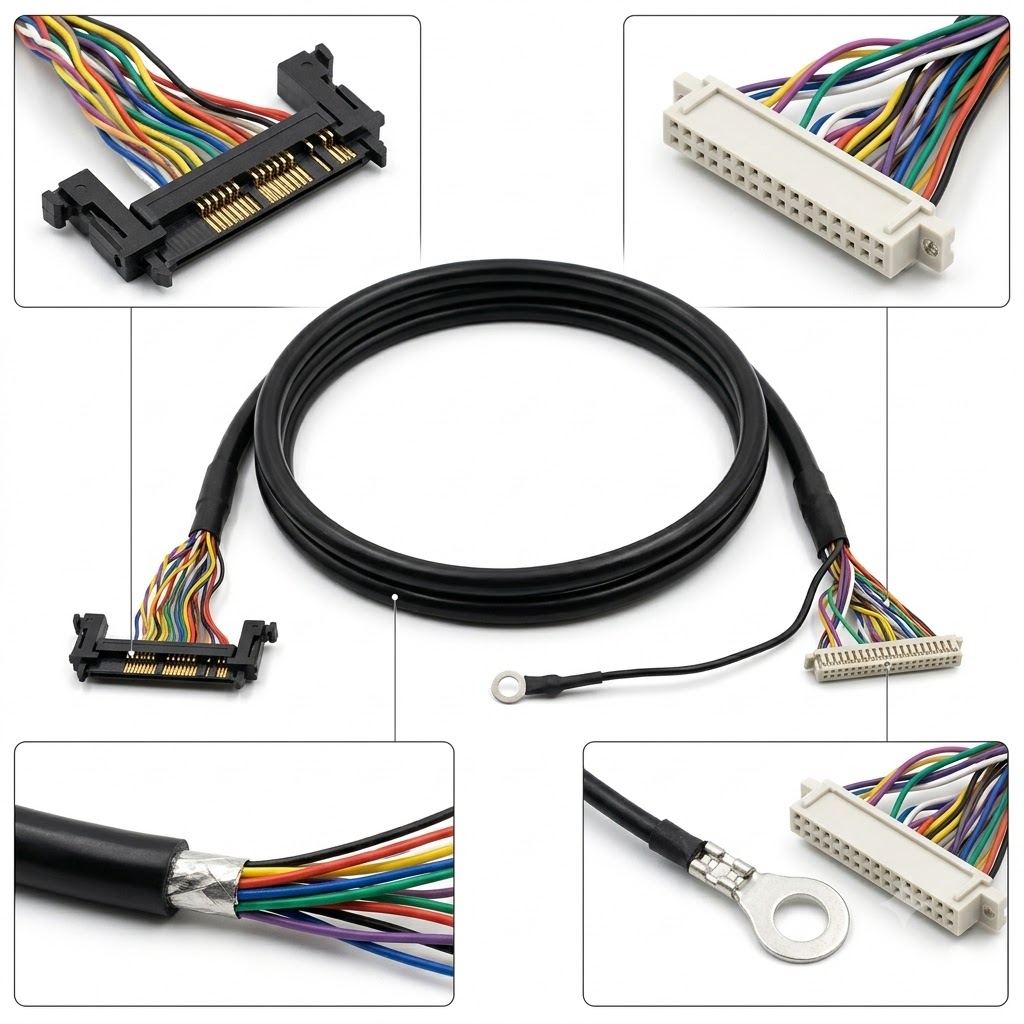

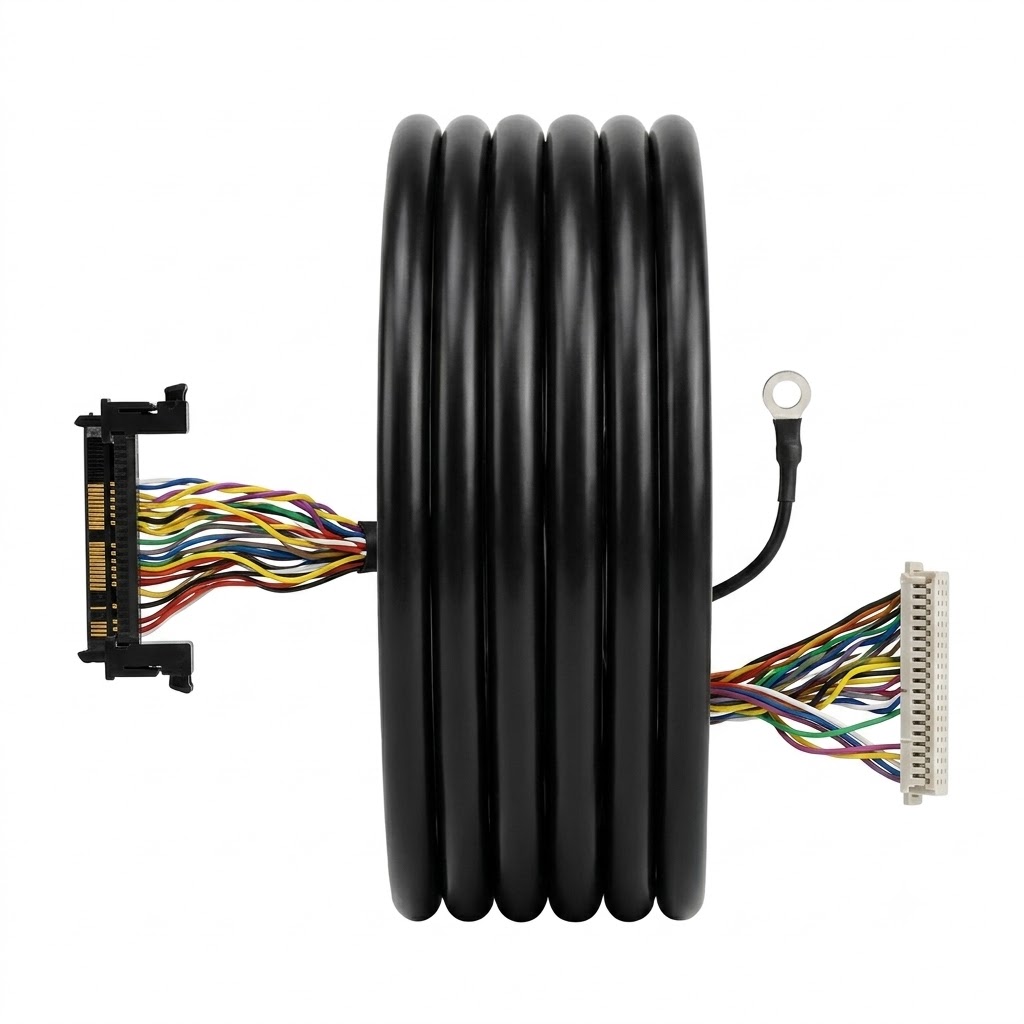

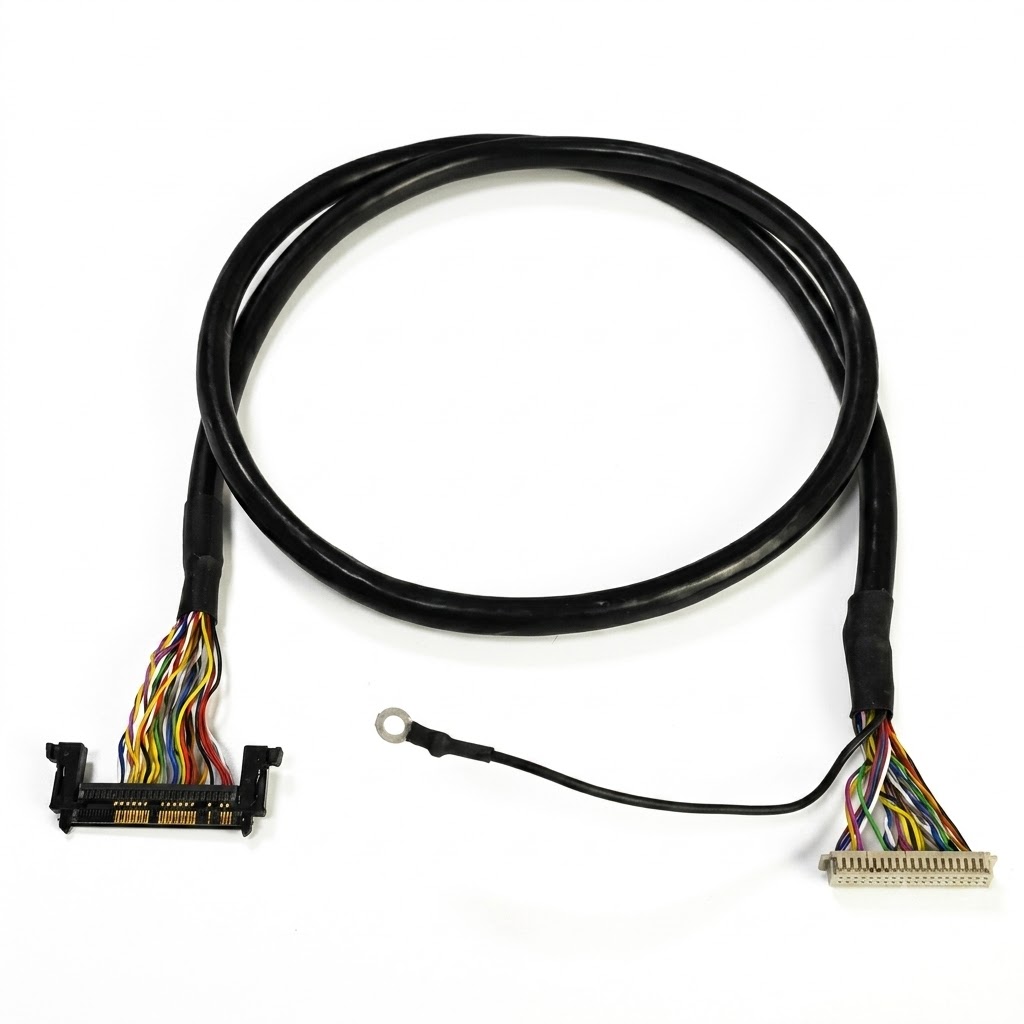

70mm Custom Multi-core Shielded Wiring Harness

A customized multi-core cable assembly designed for organized signal connections in industrial equipment and control systems, featuring an IDC termination at one end and a terminal-board connection at the other, subject to final connector specification.

Product Overview

This 70mm custom multi-core shielded wiring harness is intended for industrial electrical connections where several conductors need to be routed in a compact, organized assembly. The specified configuration uses an IDC termination on one end and a terminal-board connection on the other. The actual wire count, connector model, shielding construction, pin assignment, and dimensional definition should be confirmed against the approved drawing or sample before production.

As a direct manufacturer of custom wire harnesses and cable assemblies, Dongguan LianyuanKe Electronics Co., Ltd supports project-specific OEM/ODM requirements, from cable and connector configuration to assembly inspection and customized production.

Product Specifications

Product Name	Custom Multi-core Shielded Wiring Harness
Specified Length	70mm (measurement reference to be confirmed)
Cable Configuration	Multi-core shielded cable; core count and construction to be confirmed
End A	IDC termination; connector model and pitch to be confirmed
End B	Terminal-board connection; terminal type to be confirmed
Shielding	Shielded construction; material and termination method to be confirmed
Application	Industrial equipment and control-cabinet signal connections, subject to design requirements
Customization	OEM / ODM supported
Manufacturer	Dongguan LianyuanKe Electronics Co., Ltd

Key Product Features

Compact 70mm Assembly

A short cable assembly for compact layouts where the required connection distance and routing space are defined by the equipment design.

Multi-core Configuration

Multiple conductors can consolidate signal connections into one organized assembly. Core count, conductor size, and pin mapping can be customized to the approved design.

Shielded Cable Design

The shielding can help manage electromagnetic interference when the cable construction, grounding, and termination are correctly matched to the application.

IDC-to-Terminal Connection

The specified end-to-end connection style supports equipment-specific integration. Connector models, pitch, pinout, and terminal compatibility must be verified before manufacture.

Typical Applications

Internal signal wiring for industrial equipment
Control cabinet and electrical panel connections
Machine control and automation equipment
Electronic devices requiring compact multi-core interconnections
Custom equipment wiring where shielded cable and IDC-to-terminal connections are specified

Why Choose LianyuanKe?

Direct Factory Supply

Work directly with the manufacturer to discuss specifications, production requirements, and cost targets without unnecessary intermediary markups.

OEM / ODM Customization

Configure cable length, conductor count, connector types, wire arrangement, labeling, and packaging according to confirmed drawings or samples.

Production Quality Control

Inspection and electrical checks can be defined according to the approved product requirements, including connection verification and continuity testing where applicable.

Competitive Manufacturer Pricing

Factory-direct communication helps align material selection, assembly requirements, and order quantities with your project budget.

Custom Cable Assembly Options

Need a different length, wire count, connector arrangement, shielding specification, or terminal configuration? LianyuanKe can review your drawing, sample, or project requirements to assess a suitable OEM/ODM solution.

To help us evaluate your project, please provide the required cable length and measurement reference, wire specification, connector part numbers, pin assignment, shielding details, operating environment, target quantity, and any applicable testing requirements.
