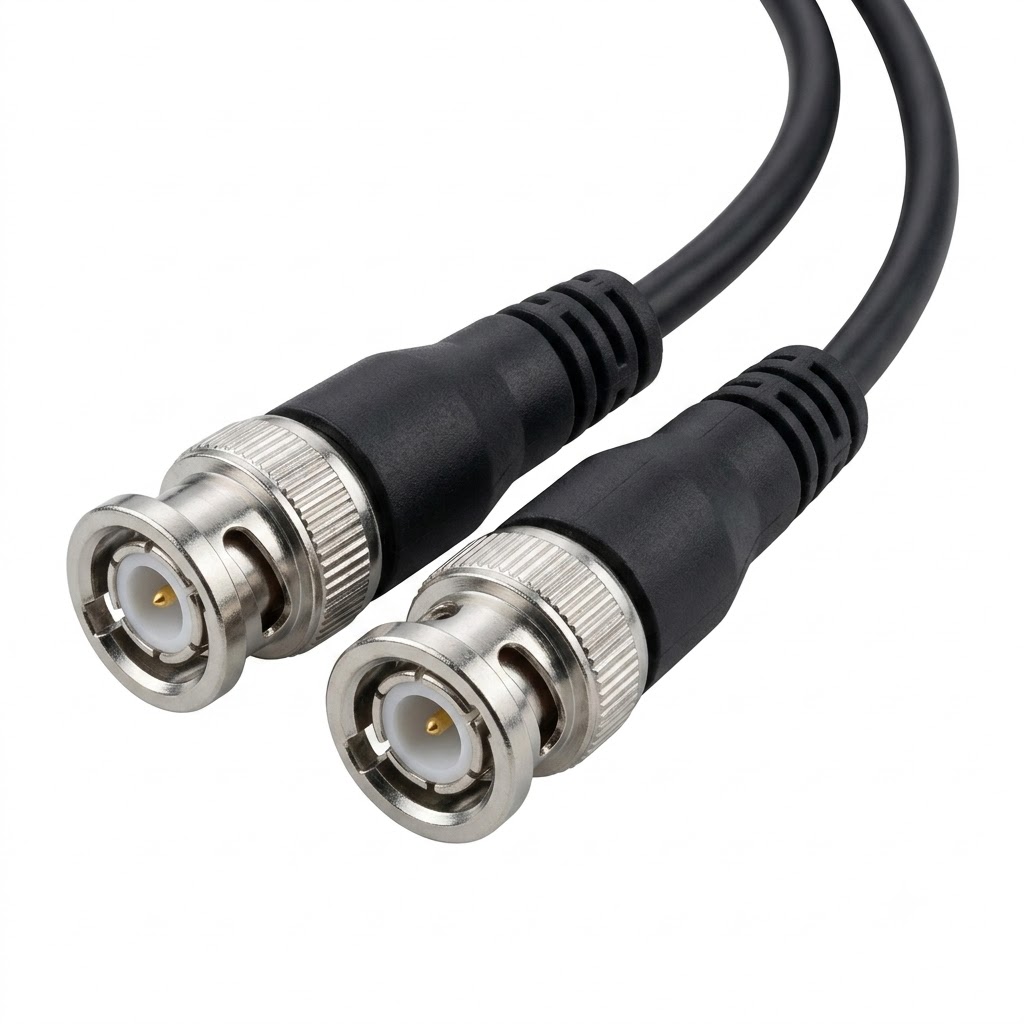

BNC Male to Male Coaxial Cable
This BNC Male to Male Coaxial Cable is designed for compatible RF signal connections, test equipment, video systems, and other applications requiring coaxial cable assemblies. Both ends feature BNC male connectors with a bayonet coupling mechanism, allowing convenient connection and disconnection from compatible BNC interfaces.
The cable features a black PVC outer jacket, metal BNC connector bodies, center contact pins, and black injection-molded strain relief boots. Coaxial cable types such as RG58, RG59, or RG174 can be considered according to the required impedance, frequency range, cable length, and application. Dongguan LianyuanKe Electronics Co., Ltd supports customized cable assembly manufacturing based on confirmed project specifications.
Product Features

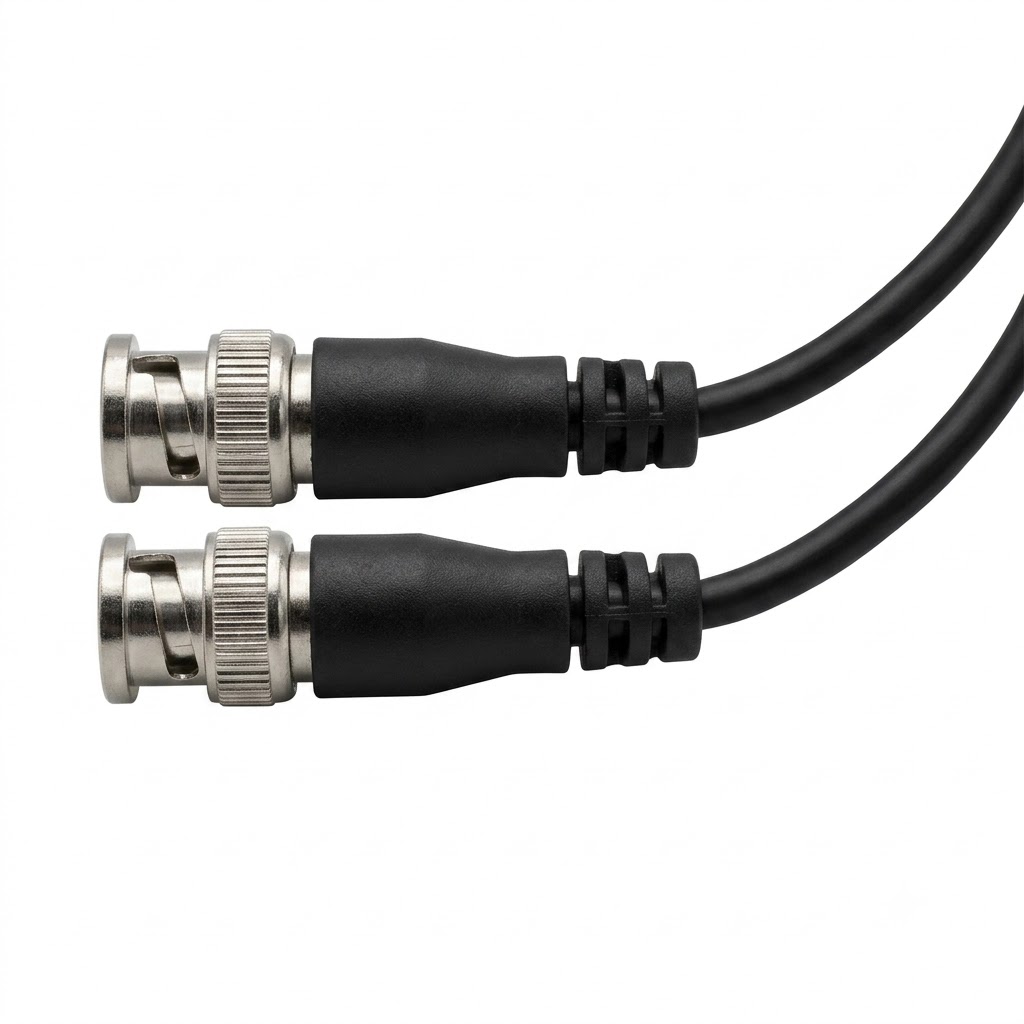

BNC Male Connectors on Both Ends
Both cable ends use BNC male connectors for compatibility with matching BNC female interfaces and equipment.
Quick Bayonet Coupling
The bayonet locking mechanism supports convenient connection and disconnection through a short rotational movement when properly aligned.
Coaxial Cable Construction
A central conductor, dielectric insulation, shielding structure, and outer jacket form the coaxial construction. Exact materials and dimensions depend on the selected cable type.
Connector Protection and Customization

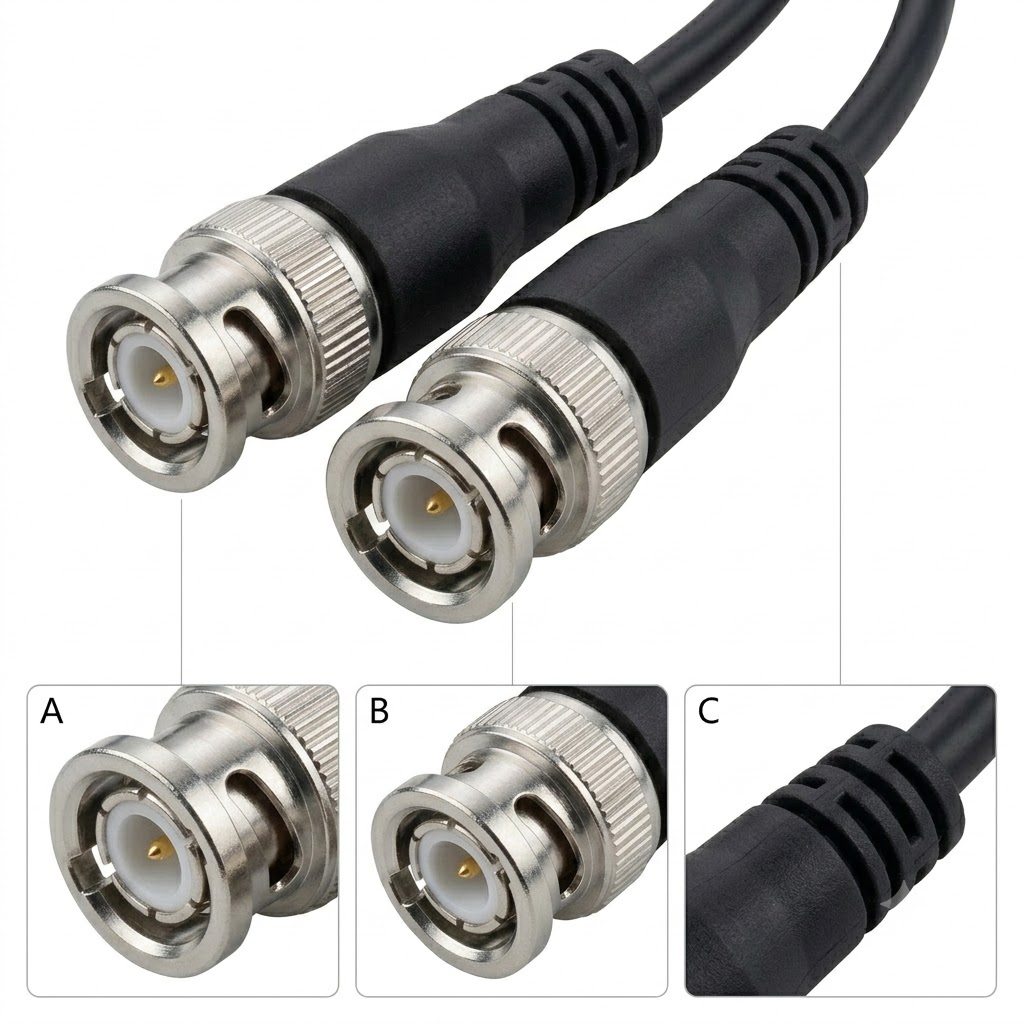

Black injection-molded strain relief boots help support the cable at the connector exits. Cable length, impedance, and connector specifications can be customized for qualified projects.
Product Specifications
| Product Type | BNC Male to Male Coaxial Cable Assembly |
| Connector Configuration | 2 × BNC male connectors (BNC plugs) |
| Coupling Mechanism | Bayonet coupling with rotational locking |
| Cable Type | Coaxial cable; RG58, RG59, or RG174 options subject to application requirements |
| Characteristic Impedance | 50 Ω or 75 Ω, depending on the selected cable and connector configuration |
| Outer Jacket | Black PVC; exact material grade to be confirmed |
| Center Contact | Conductive center pin with gold plating as specified |
| Dielectric Insulation | White PTFE/Teflon, subject to the selected connector specification |
| Connector Body | Nickel-plated brass or other specified metal construction |
| Strain Relief | Black injection-molded strain relief boot |
| Cable Length | Custom length available; specify required dimensions |
| Manufacturer | Dongguan LianyuanKe Electronics Co., Ltd |
Potential Applications
- RF signal connections and compatible test equipment
- Video and surveillance systems using compatible BNC interfaces
- Broadcast and electronic instrumentation connections where the selected impedance is appropriate
- Laboratory equipment, signal routing, and customized electronic cable assemblies
- OEM/ODM projects requiring specific cable lengths, connector finishes, or coaxial cable types
Why Choose LianyuanKe?
Dongguan LianyuanKe Electronics Co., Ltd is a direct manufacturer specializing in custom wire harnesses and cable assemblies. Working directly with our factory helps customers communicate technical requirements efficiently, reduce unnecessary intermediary costs, and evaluate cost-effective manufacturing solutions based on agreed specifications.
Our production approach emphasizes connector assembly, cable processing, in-process inspection, and final quality checks according to project requirements. We support OEM/ODM customization and work with customers to define the appropriate cable type, impedance, connector construction, and assembly details for their applications.
Need a Custom Cable Assembly?
Tell us your required cable type, impedance, cable length, connector specifications, and application. Our factory team will help you evaluate a suitable customized coaxial cable solution.
