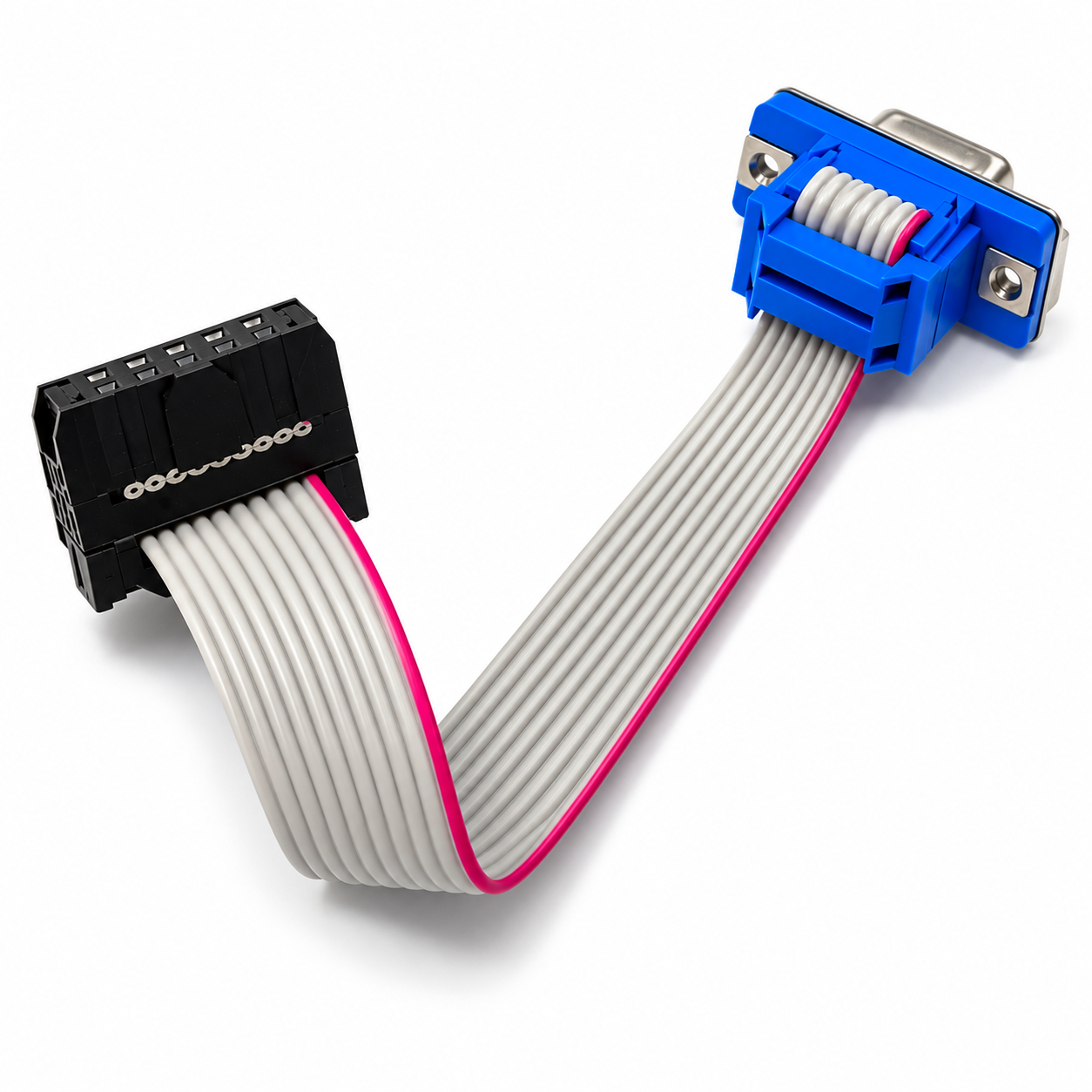

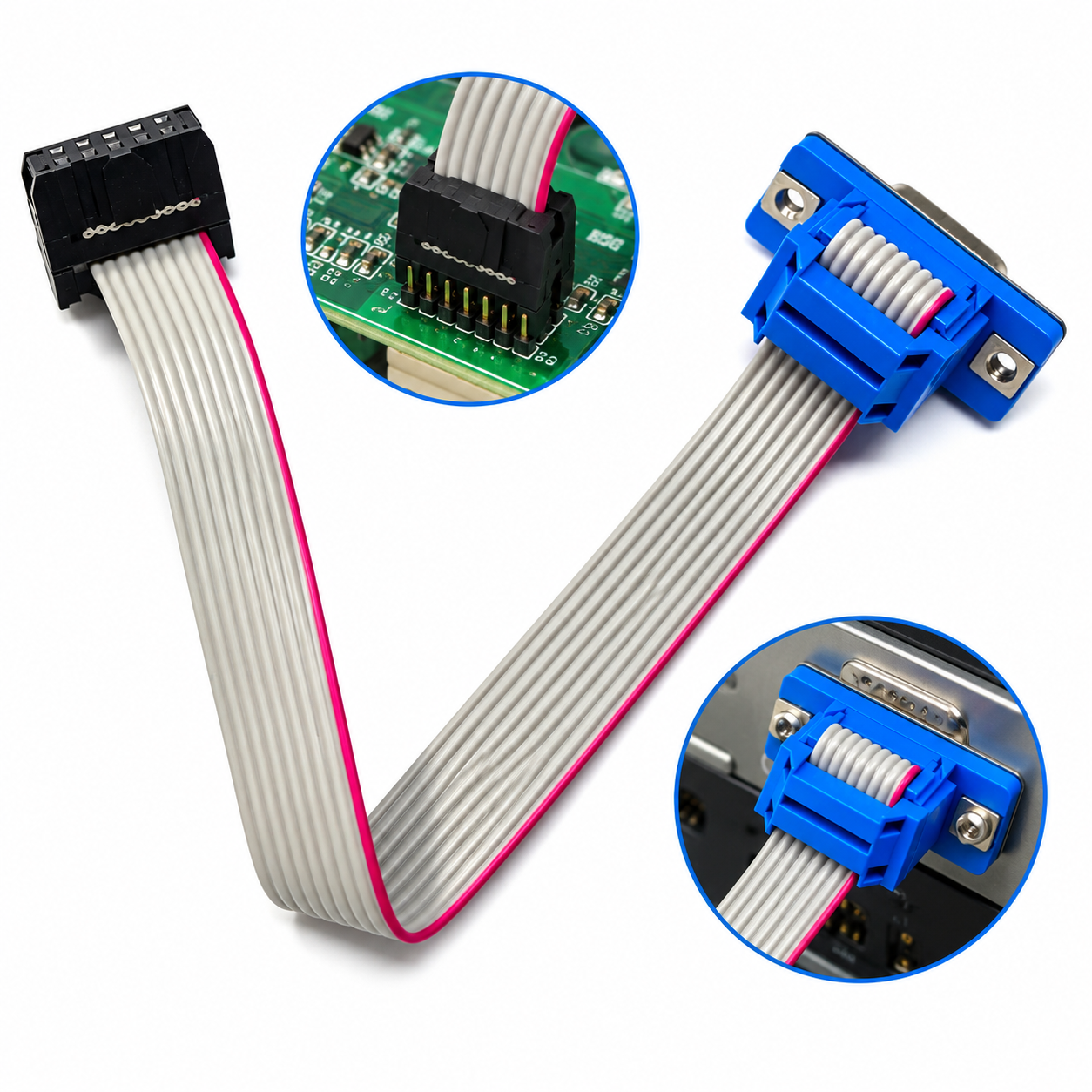

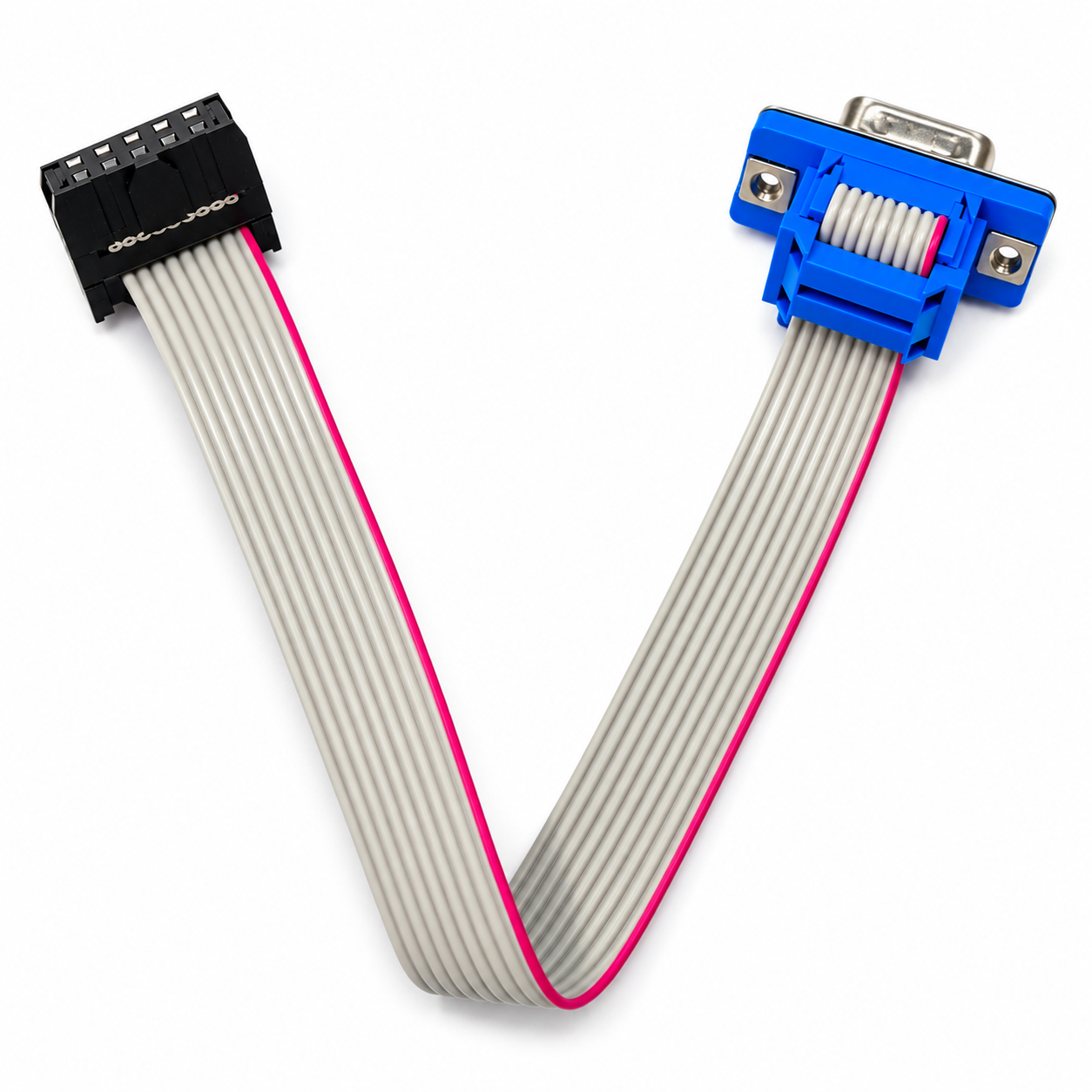

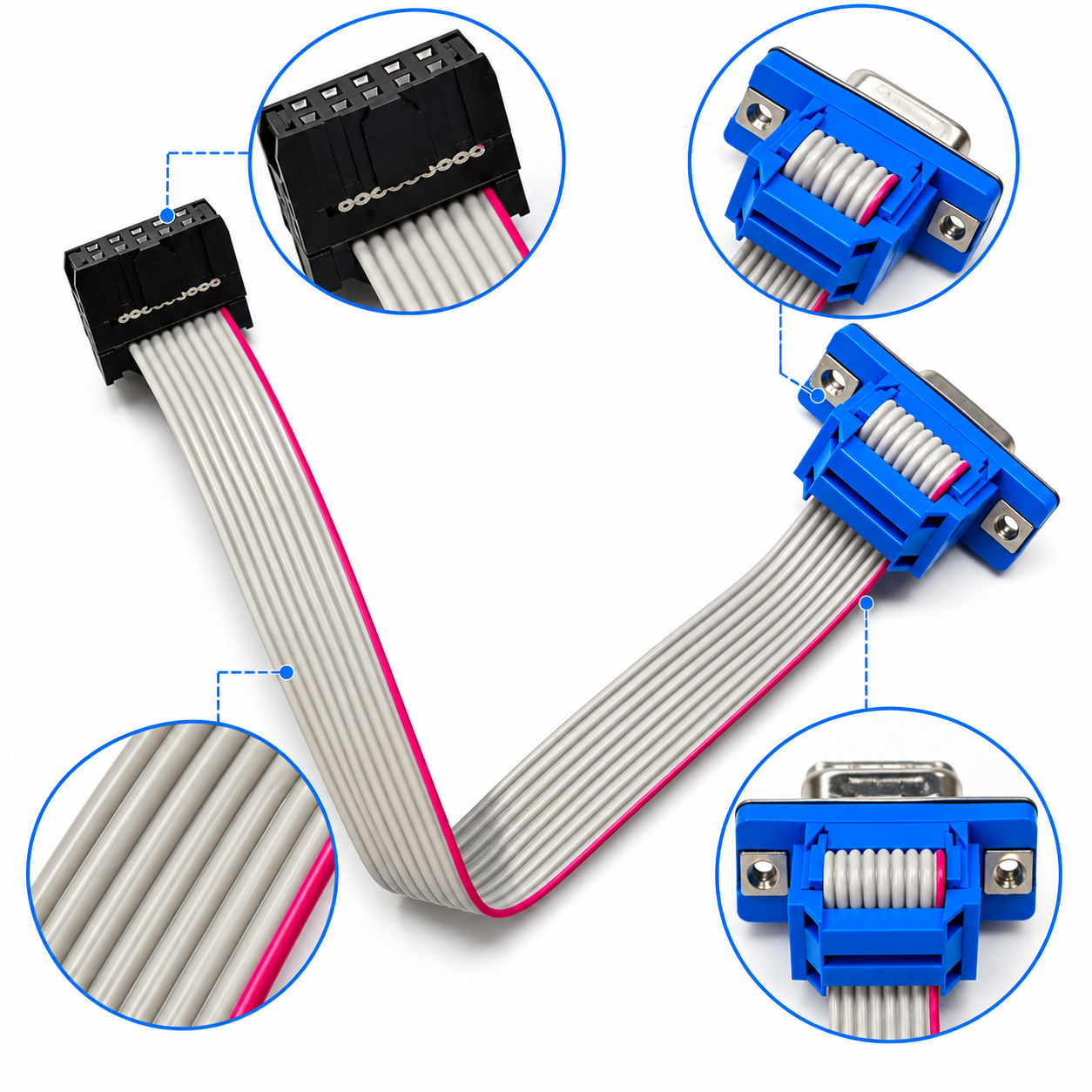

DB9 to IDC Ribbon Cable Assembly for Serial Communication and Embedded Systems

This DB9 to IDC Ribbon Cable Assembly is designed to connect compatible D-Sub interfaces with IDC ribbon cable connections in electronic equipment and control systems.

Featuring a DB9 connector, an IDC ribbon cable connector and a flat ribbon cable design, this assembly provides a practical wiring solution for compatible serial communication interfaces, embedded electronics and industrial control applications.

Product Specifications

Product Name	DB9 to IDC Ribbon Cable Assembly
Connector Type 1	DB9 D-Sub Connector
Connector Type 2	IDC Ribbon Cable Connector
Cable Type	Flat Ribbon Cable
Cable Color	Gray Ribbon Cable with Red Identification Edge
IDC Connector Housing	Black
D-Sub Connector Housing	Blue
Cable Length	Customizable According to Requirements
Pin Configuration	To Be Confirmed According to the Product Drawing
Customization	Cable Length, Connector Options and Cable Configuration

Key Features

DB9 and IDC Connectivity:
Connects compatible D-Sub interfaces and IDC ribbon cable interfaces in a single cable assembly.
Space-Saving Flat Cable:
The ribbon cable structure helps organize multiple conductors and supports neat internal wiring.
Convenient Installation:
Connectorized construction simplifies installation and replacement in compatible electronic systems.
Clear Cable Orientation:
The red identification edge helps identify the cable orientation during assembly when aligned with the specified pin assignment.
Custom Cable Solutions:
Cable length, connector configuration and other assembly details can be tailored to project requirements.
Manufacturing Quality Control:
Production inspection and electrical continuity testing can be arranged according to the agreed product specifications.

Applications

This DB9 to IDC Ribbon Cable Assembly can be used in compatible electronic systems, including:

Serial Communication Equipment
Embedded Systems and Development Boards
Industrial Control Systems
Electronic Testing and Diagnostic Equipment
Computer and Peripheral Interfaces
Control Boards and Internal Electronic Connections
Custom Electronic Equipment and OEM Projects

Compatibility depends on the connector gender, pin assignment, wiring sequence and electrical requirements of the target equipment.

Why Choose Us?

Dongguan LianyuanKe Electronics Co., Ltd specializes in customized wire harnesses and cable assemblies, providing manufacturing support for different electronic connection requirements.

Direct Factory Supply:
Work directly with the manufacturer for product discussions, customization requirements and quotations.

Custom Manufacturing:
Cable length, connector combinations, wiring configurations and other specifications can be discussed according to your project needs.

Engineering Support:
Drawings, samples and technical specifications can be reviewed before production to help confirm compatibility.

Quality Control:
Inspection and continuity testing can be performed according to the agreed product requirements.

OEM / ODM Support:
We support customized cable assembly projects for equipment manufacturers, distributors and other business customers.

Custom Cable Assembly Solutions

Need a different cable length, connector configuration, pin assignment or ribbon cable specification?

Send us your requirements or technical drawing. Our team can review your project and discuss a suitable customized cable assembly solution for your application.
