Automotive LED/HID Headlight Retrofit Wiring Harness

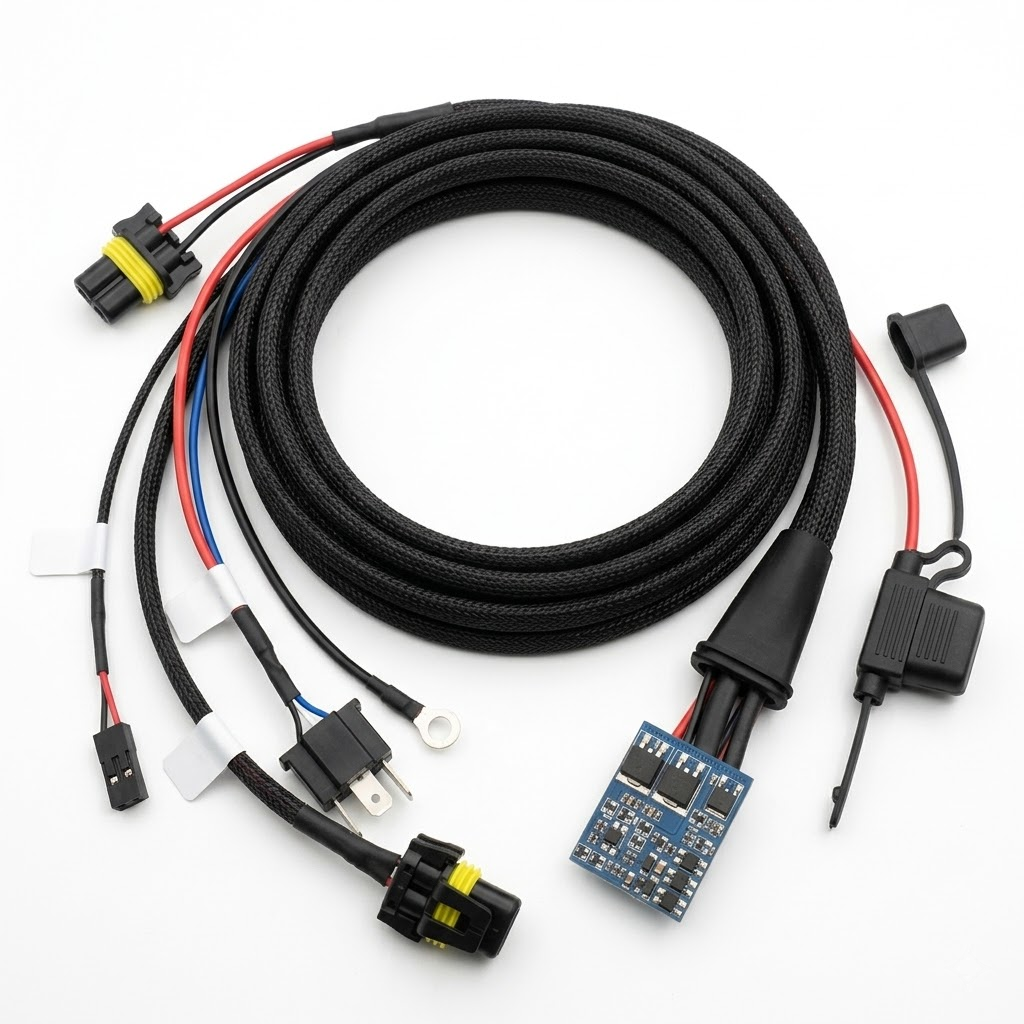

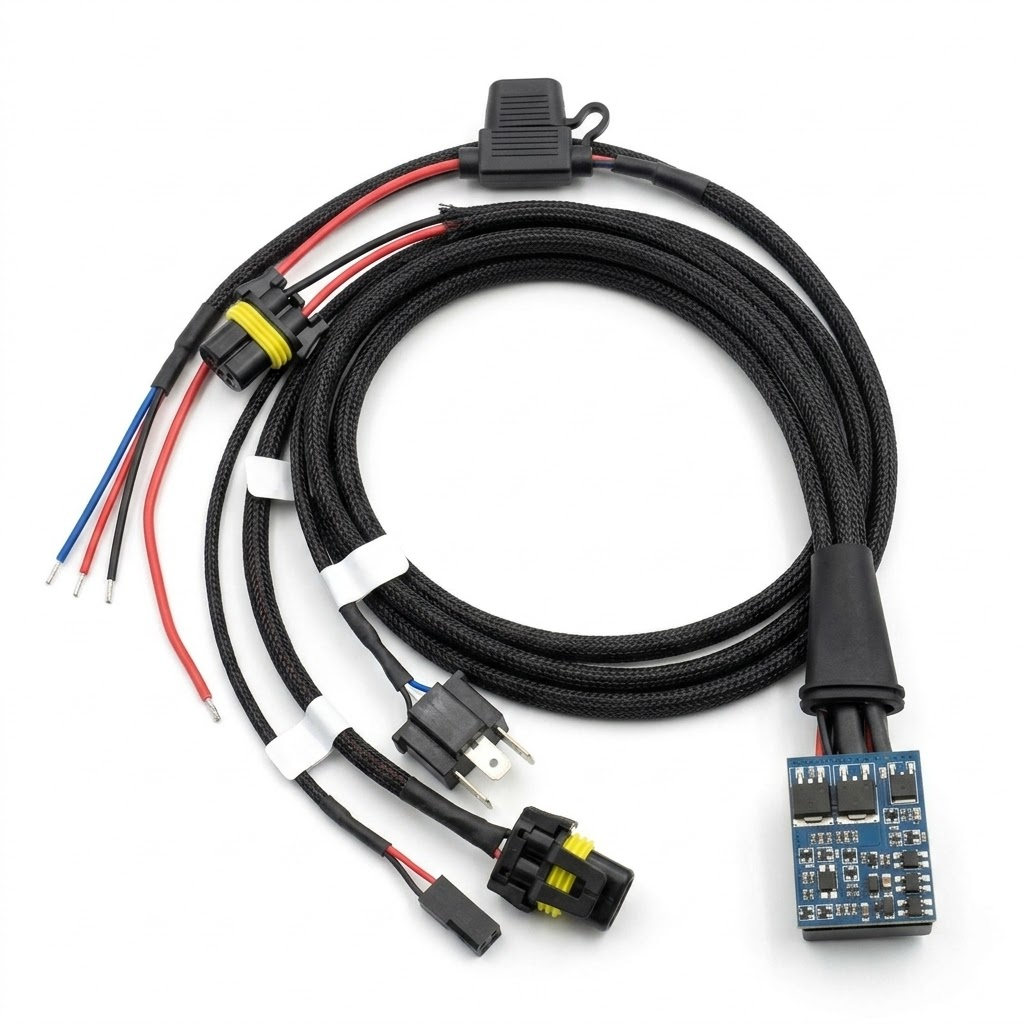

This automotive LED/HID headlight retrofit wiring harness integrates automotive-style connectors, a fuse holder, ring terminals, branch protection, and a PCB-based control module in one wiring assembly. It is designed for compatible automotive lighting retrofit projects where a dedicated power connection and customized control wiring are required. Dongguan LianyuanKe Electronics Co., Ltd provides custom wire harness manufacturing, OEM/ODM development, and direct factory supply based on customer drawings, samples, and verified electrical requirements.

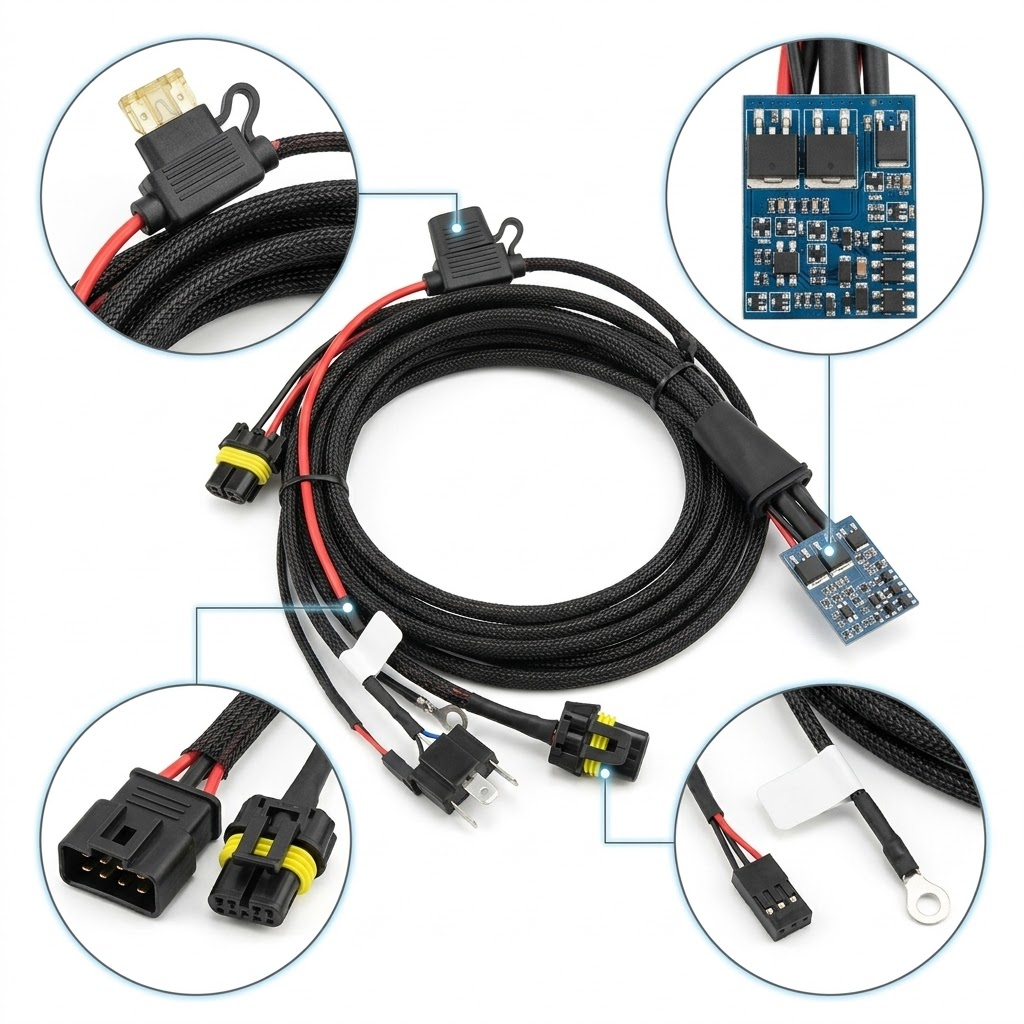

Automotive Waterproof Connectors
Automotive-style connectors with yellow silicone sealing rings are available for compatible headlight, fog light, or auxiliary lighting interfaces. Exact connector series and sealing performance must be confirmed.
Integrated PCB Control Module
A blue printed circuit board with electronic components is integrated into the harness. Supported functions depend on the actual circuit design and verified control logic.
Inline Fuse Protection
An inline blade fuse holder with a protective rubber cover accommodates a specified fuse to help protect the circuit against overcurrent conditions.
Power and Ground Terminals
Metal ring terminals support battery power or chassis-ground connections according to the approved wiring diagram and terminal sizing requirements.
Protected Wire Branches
Black braided protective sleeving, heat-shrink tubing, and rubber sleeves help protect the wiring assembly from abrasion and support the cable branches and connector transitions.
OEM/ODM Harness Customization
Connector types, wire lengths, branch layouts, terminal specifications, fuse ratings, and PCB control functions can be developed according to customer requirements.
Product Specifications
| Product Type | Automotive LED/HID Headlight Retrofit Wiring Harness with Control Module and Fuse Holder |
| Main Lighting Connector | Automotive-style waterproof connector with yellow silicone sealing ring; exact series and pin count to be confirmed |
| Connector Reference | Superseal-style 2-pin connector may be considered where compatible; actual manufacturer, series, and mating interface must be verified |
| Control Connector | Compact 2-pin control connector; exact housing and terminal series to be confirmed |
| Relay / Switching Interface | 3-pin or blade-terminal relay-style socket and control connection, subject to the actual assembly design |
| Power / Ground Terminals | Metal ring terminals for battery positive and chassis ground as defined by the wiring diagram |
| Fuse Protection | Inline blade fuse holder with protective rubber cover; fuse type and current rating to be specified |
| Control Module | Blue PCB with electronic components, including MOSFETs and passive components as fitted; exact circuit and function to be confirmed |
| Possible Control Functions | Voltage regulation, timed switching, daytime running light control, flashing modes, or high/low beam control only when supported by the actual circuit design |
| Main Wire Protection | Black braided protective sleeving |
| Branch Protection | Heat-shrink tubing and rubber sleeves at selected branches and connector transitions |
| Wire Specification | Conductor material, wire gauge, insulation material, temperature rating, and current capacity to be confirmed |
| Operating Voltage | To be confirmed for the intended vehicle electrical system and control module |
| Waterproof Rating | Connector sealing features specified; assembly IP rating requires verification and testing |
| Customization | Connector layout, wire length, branch structure, fuse rating, terminal type, PCB function, and protective sleeving |
| Manufacturer | Dongguan LianyuanKe Electronics Co., Ltd |
Applications
This custom harness is intended for compatible automotive lighting retrofit projects. Connector matching, vehicle electrical compatibility, control logic, and applicable road-use requirements should be checked before installation.
- Compatible automotive LED headlight retrofit systems
- Compatible HID lighting retrofit installations
- Automotive fog lights and auxiliary lighting assemblies
- Custom vehicle lighting control and switching harness projects
- OEM automotive electrical assemblies developed to customer drawings or samples
Why Choose LianyuanKe?
Dongguan LianyuanKe Electronics Co., Ltd is a direct manufacturer specializing in custom wire harnesses and cable assemblies. We support projects from connector and wiring specification review through sample development, assembly, and production inspection.
- Direct factory supply: Work directly with the manufacturer and reduce unnecessary intermediary costs.
- OEM/ODM customization: Adapt connector combinations, branch layouts, wire lengths, fuse holders, and control modules to project requirements.
- Production quality control: Inspection plans can include connector fit, terminal crimping, continuity, polarity, fuse installation, and functional tests where applicable.
- Flexible project development: Sample-based evaluation and drawing review help establish the required wiring and control specifications.
- Competitive factory pricing: Cost-effective quotations based on confirmed materials, circuit functions, order quantity, and testing requirements.
Need a Custom Cable Assembly?
Send us your wiring diagram, connector samples, target vehicle application, or control requirements. Our team can discuss an OEM/ODM solution with direct factory pricing and defined quality checks.
