Automotive Tail Light Wiring Harness | Braided Socket Cable Assembly For Trailers & Towing Vehicles

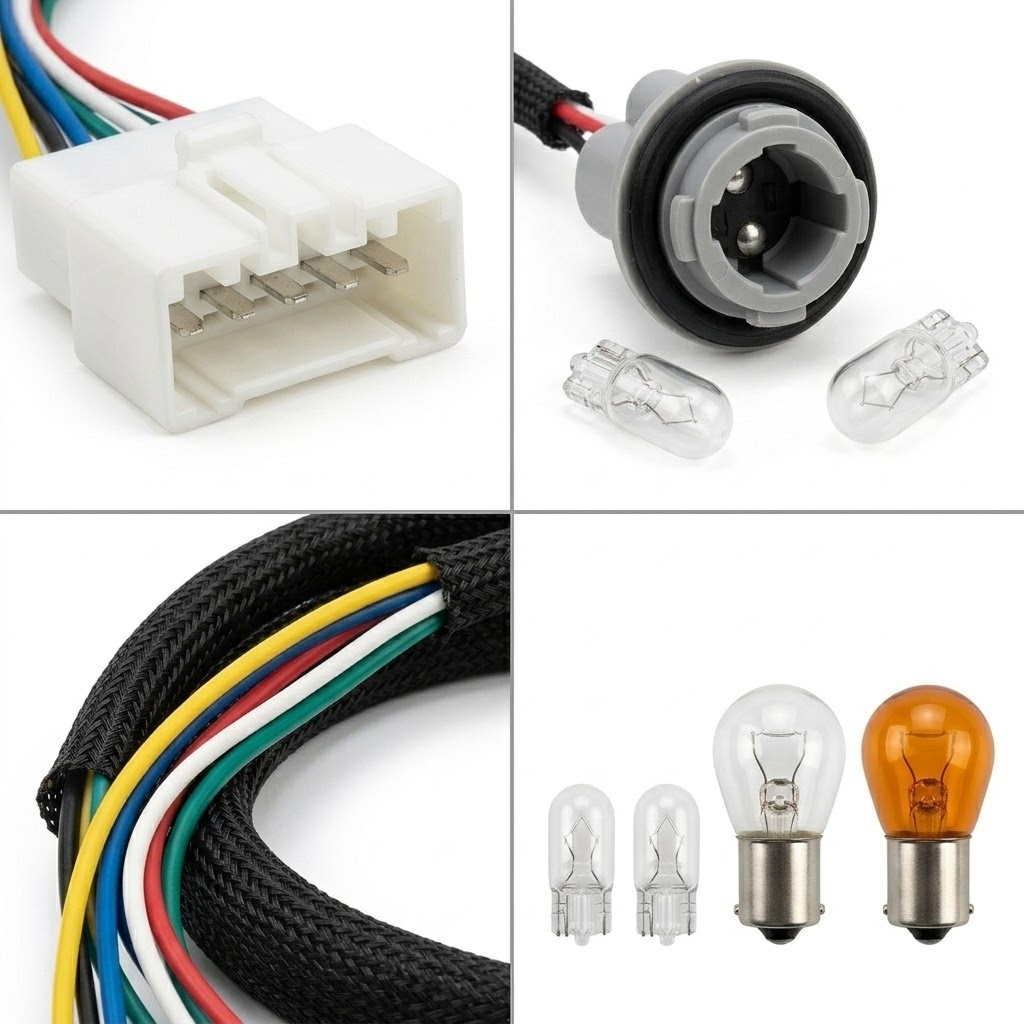

  • Heavy-Duty Braided Protection: The entire main wiring trunk is fully encased in a premium PET braided expandable sleeve, offering superior resistance against engine heat, chassis vibration, and severe mechanical abrasion.

  • Plug-and-Play Integration: Features a robust multi-pin main connector and clearly color-coded internal wires, dramatically reducing installation time for complex tail light, brake, and turn signal configurations.

  • Automotive-Grade Conductivity: Constructed with premium 18 AWG copper conductors to ensure stable power delivery, preventing light flickering and maximizing bulb lifespan.

  • Rapid Custom OEM Production: Backed by our standard 6-step manufacturing workflow, your custom orders (specific socket types, sleeve lengths, and pinouts) are built flawlessly and shipped within 3-5 days.

GET MY FREE QUOTE

Automotive Tail Light Wiring Harness | Braided Socket Cable Assembly For Trailers & Towing Vehicles

Rear vehicle lighting systems face some of the harshest conditions on the road—from relentless vibration to extreme weather. Our Custom Automotive Tail Light Wiring Harness is engineered to survive it all. Designed to connect multiple lighting functions (turn signals, brakes, and reverse lights) into one streamlined assembly, this harness replaces messy, exposed wires with a clean, professional solution.

Feature Details

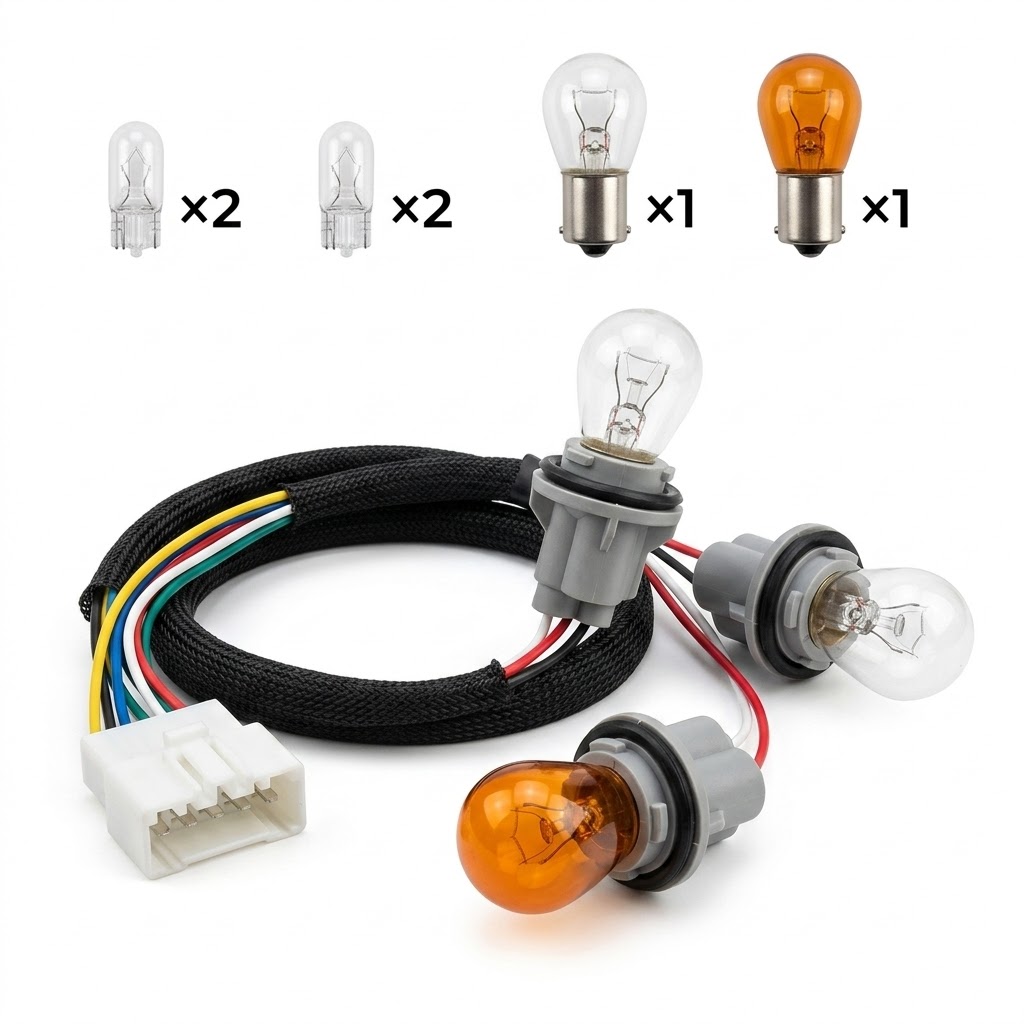

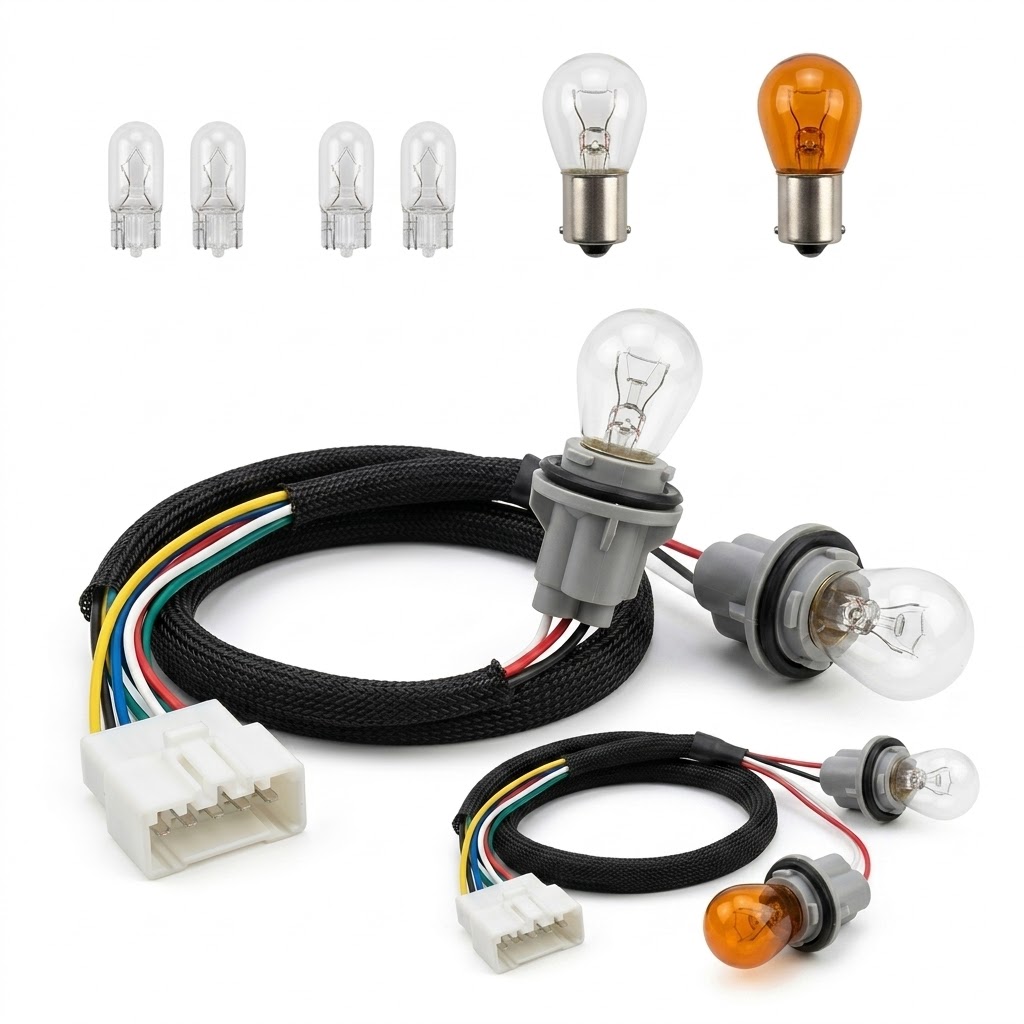

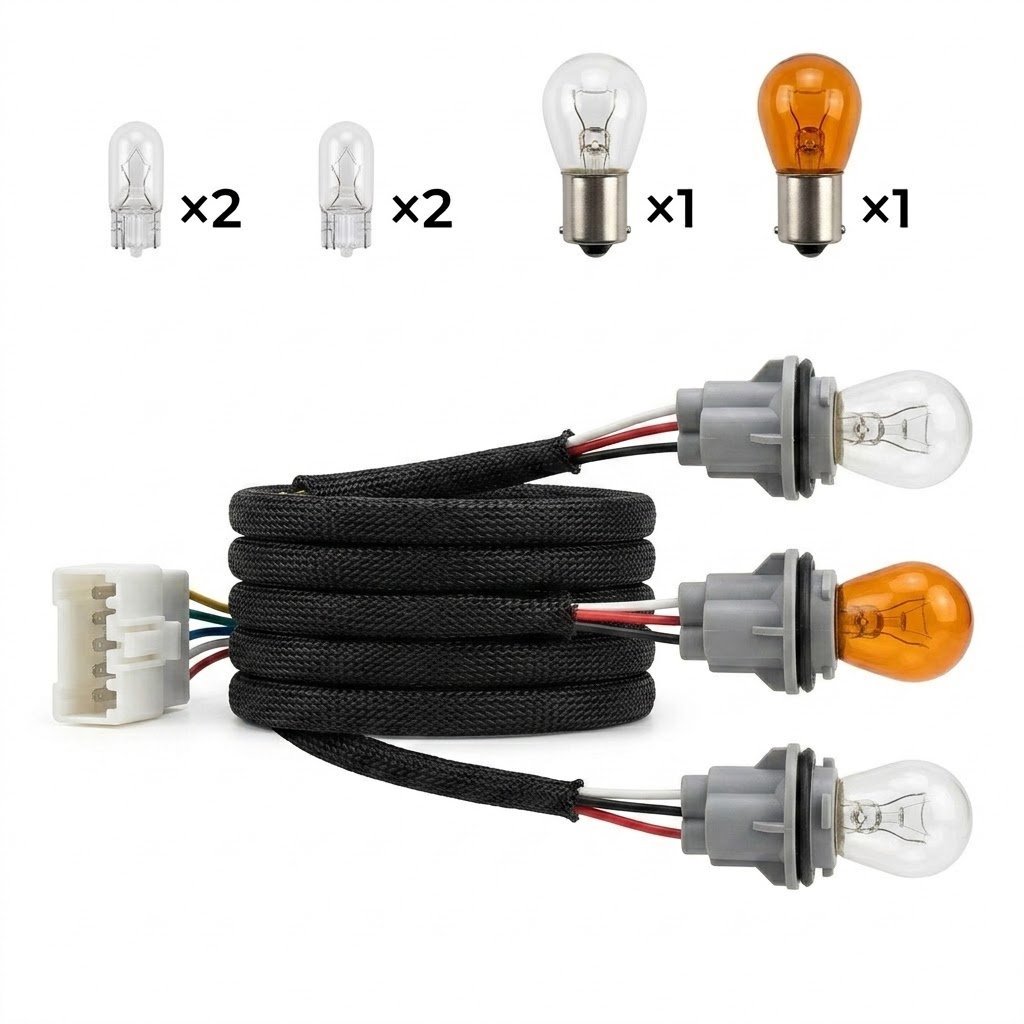

Name Custom Automotive Tail Light Wiring Harness Assembly with Bulb Sockets
Wire Gauge 20AWG copper wires
Wire Colors Red, Black,Blue,Yellow,White
Standard Length 100mm (Customizable)
Certifications UL, RoHS, REACH
Main Connector Nylon PA66 Multi-Pin Connector

Applications

Our Custom Automotive Tail Light Wiring Harness Assembly with Bulb Sockets are widely used in:

  • Automotive Tail Light Assemblies: Complete internal wiring solutions for OEM and aftermarket rear brake, turn, and reverse light clusters.

  • Trailers & Towing Vehicles: Rugged, abrasion-resistant routing for heavy-duty utility trailers, RVs, and boat trailers.

  • Off-Road & 4×4 Customization: Secure lighting harnesses that withstand extreme mud, vibration, and brush impacts.

  • Motorcycle & ATV Upgrades: Clean and protected multi-bulb routing for custom fender eliminator kits and aftermarket lighting.

Why Choose Us?

(Your Direct Source Factory)

We are a professional wire harness processing source factory. Partnering with us means you get direct-from-factory pricing, uncompromising quality, and unparalleled technical support.

  • Engineering Excellence: After you place an order, our experienced engineers will create and send you precise technical drawings for confirmation before any manufacturing begins. This ensures your customized harness fits your project perfectly.

  • Full OEM/ODM Support: Whether you need different lengths, specific wire gauges, or unique connector combinations, our OEM/ODM services can bring your blueprint to reality.

  • Low MOQ & Fast Delivery: We support businesses of all sizes. Start with a low Minimum Order Quantity (MOQ of only 10 PCS). Enjoy rapid turnaround times with a standard lead time of 7-12 days.

  • Certified Quality: Safety is our priority. All our raw materials and finished cable assemblies meet strict UL, RoHS, and REACH standards, ensuring safe usage in global markets.

  • Bulk Wholesale Discounts: We offer tiered pricing for bulk orders to maximize your profit margins.

Contact us today to confirm your custom drawings and get your wire harnesses into production!
