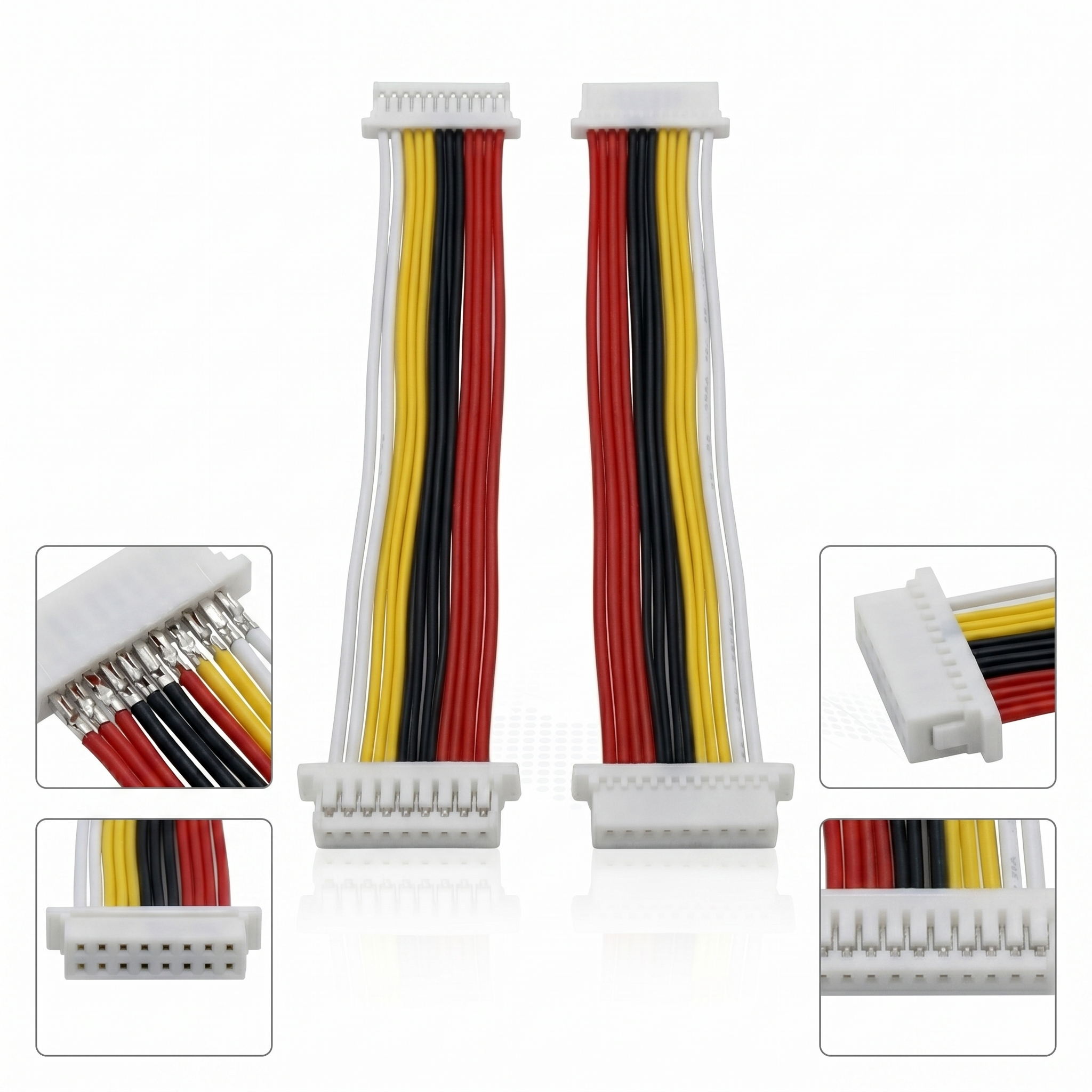

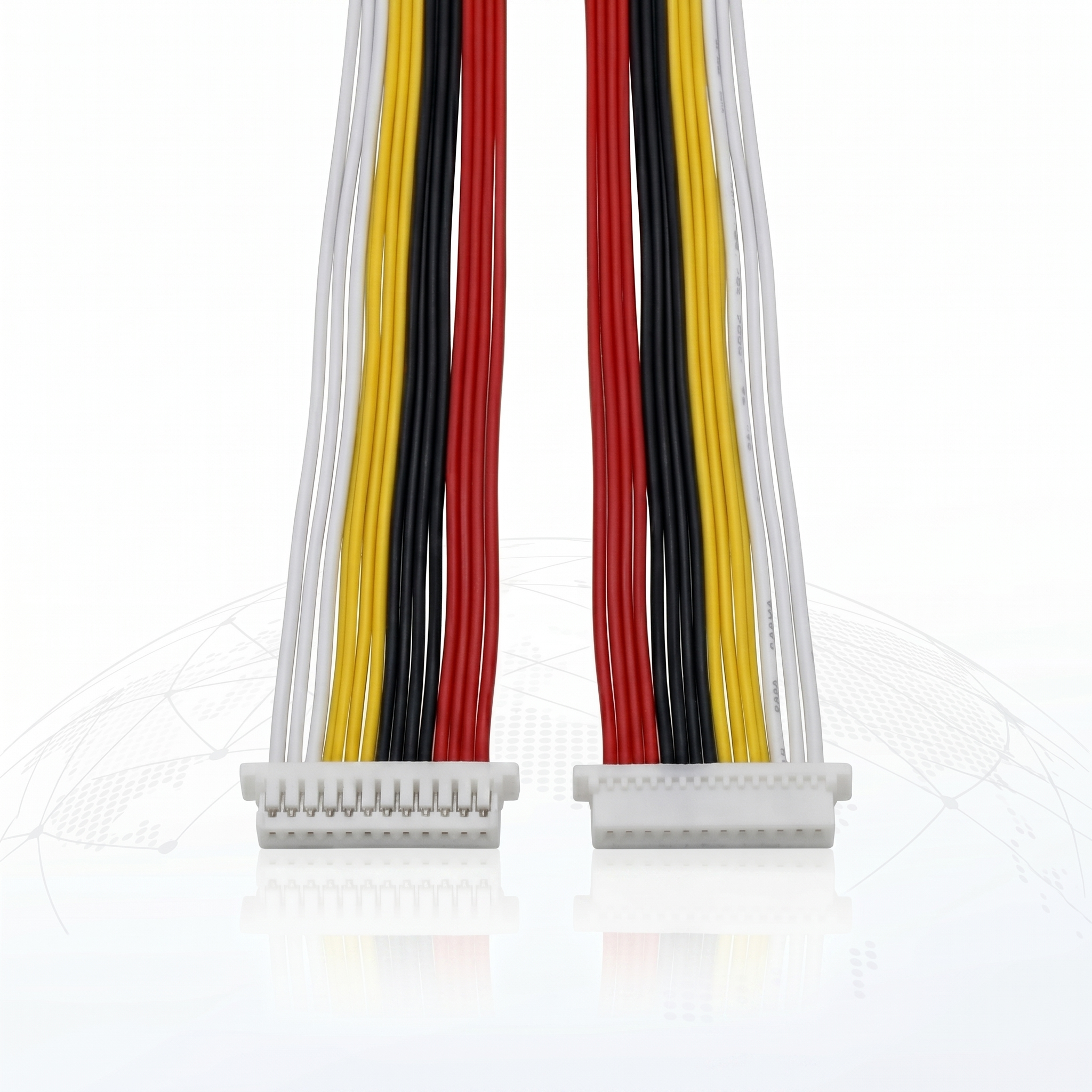

Dual-Row 10-Pin Multi-Color Wire Harness | Custom Pitch Connector Cable For Consumer Electronics

  • Color-Coded Efficiency: Designed with distinct multi-color wiring (Red, Black, Yellow, White) for immediate visual identification, drastically reducing assembly time and wiring errors.

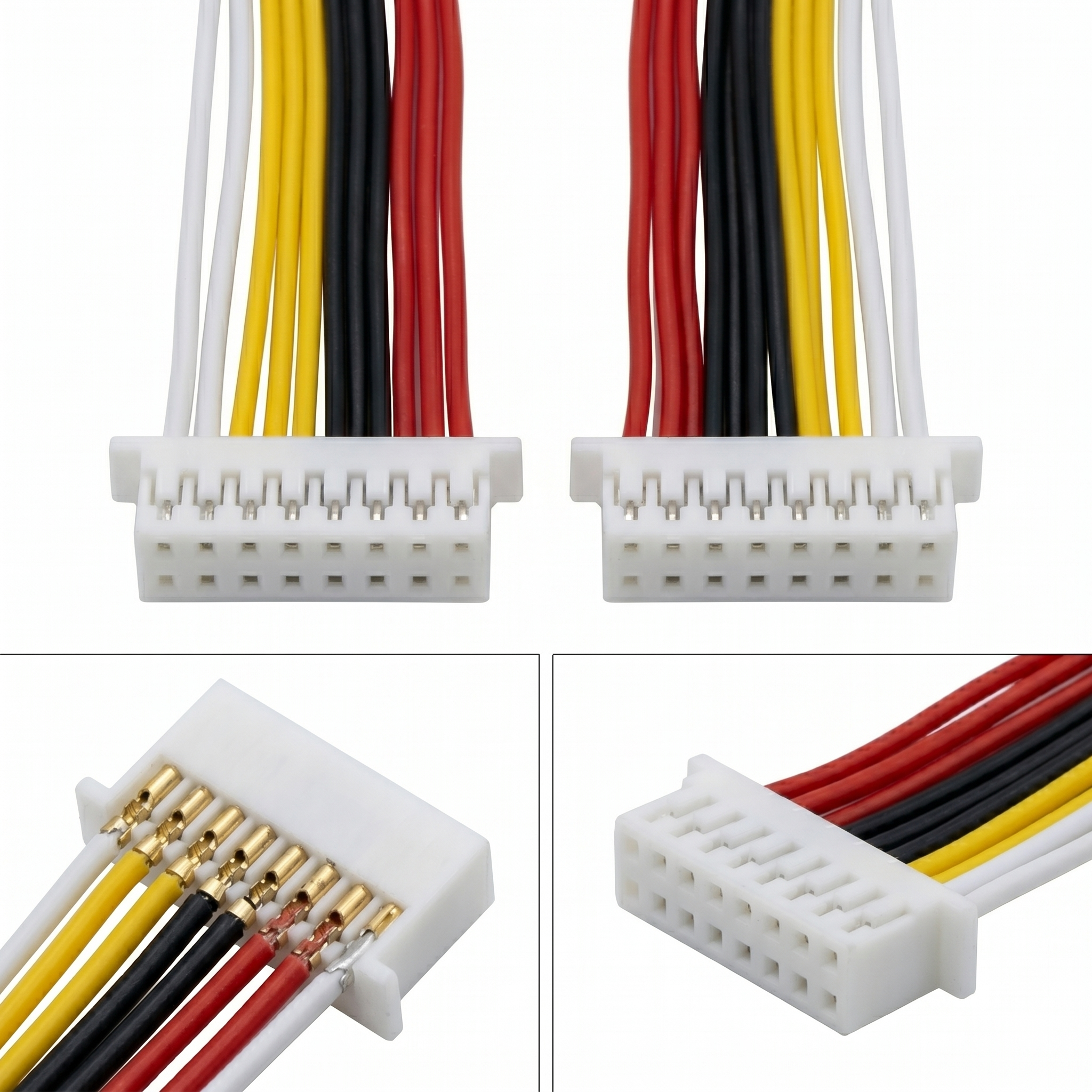

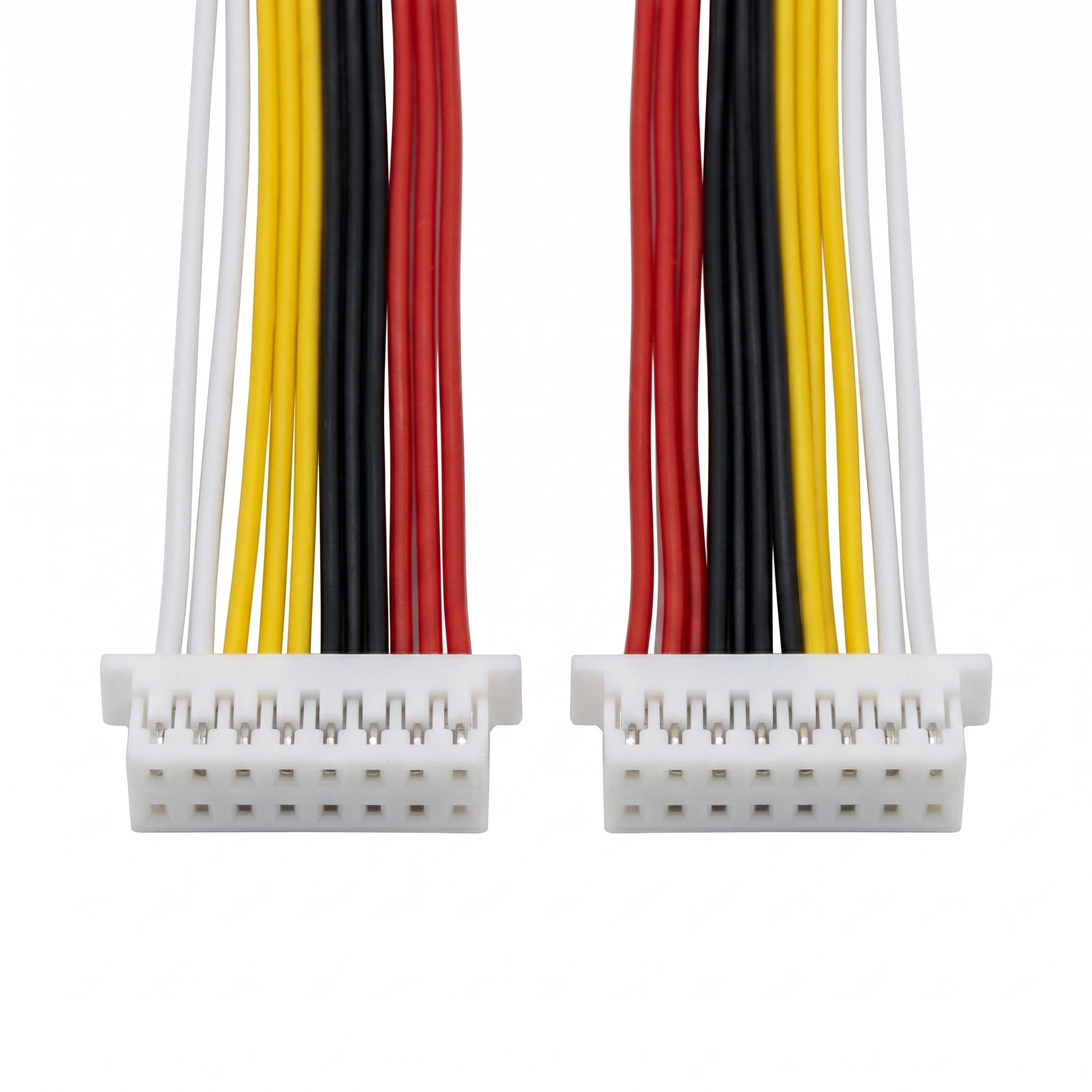

  • Secure Dual-Row Connection: Features a robust dual-row 10-pin connector housing that ensures a firm, vibration-resistant locking fit for sensitive PCBA and wire-to-board applications.

  • Premium Copper Core: Constructed with high-quality 22/24 AWG tinned copper conductors, delivering reliable, noise-free signal and low-current power transmission.

  • Rapid Custom Production: Supported by our standard 6-step manufacturing process, your custom OEM/ODM orders (specific wire lengths, pin counts, or color sequences) are built and shipped within 3-5 days.

GET MY FREE QUOTE

Dual-Row 10-Pin Multi-Color Wire Harness | Custom Pitch Connector Cable For Consumer Electronics

Optimize your electronic assemblies with our Dual-Row Multi-Color Wire Harness. Engineered for complex internal routing, this cable assembly utilizes a vibrant, standard color-coding system that allows engineers and technicians to trace individual signals instantly. Whether you are connecting secondary logic boards, sensors, or control panels, this harness guarantees a neat, accurate, and foolproof installation.

Feature Details
Name Dual-Row 10-Pin Multi-Color Wire Harness Connector Cable
Wire Gauge 22/24 AWG tinned copper
Wire Colors Red, Black, Yellow, White
Standard Length 100mm (Customizable)
Certifications UL, RoHS, REACH
Pitch 2.0mm or 2.54mm

Applications

Our Dual-Row 10-Pin Multi-Color Wire Harness Connector Cable are widely used in:

  • Consumer Electronics: Internal signal routing for smart home hubs, audio amplifiers, and set-top boxes.

  • Industrial Control Boards: Reliable wire-to-board connections for PLCs, motor drivers, and sensor arrays.

  • Arcade & Gaming Machines: Color-coded power and signal delivery for complex joystick and button control panels.

  • IoT Prototyping: Essential secure bridging cables for custom Raspberry Pi, Arduino, and embedded system projects.

Why Choose Us?

(Your Direct Source Factory)

We are a professional wire harness processing source factory. Partnering with us means you get direct-from-factory pricing, uncompromising quality, and unparalleled technical support.

  • Engineering Excellence: After you place an order, our experienced engineers will create and send you precise technical drawings for confirmation before any manufacturing begins. This ensures your customized harness fits your project perfectly.

  • Full OEM/ODM Support: Whether you need different lengths, specific wire gauges, or unique connector combinations, our OEM/ODM services can bring your blueprint to reality.

  • Low MOQ & Fast Delivery: We support businesses of all sizes. Start with a low Minimum Order Quantity (MOQ of only 10 PCS). Enjoy rapid turnaround times with a standard lead time of 7-12 days.

  • Certified Quality: Safety is our priority. All our raw materials and finished cable assemblies meet strict UL, RoHS, and REACH standards, ensuring safe usage in global markets.

  • Bulk Wholesale Discounts: We offer tiered pricing for bulk orders to maximize your profit margins.

Contact us today to confirm your custom drawings and get your wire harnesses into production!
